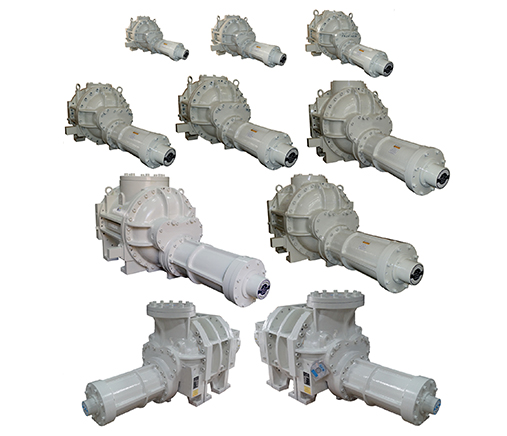

fil compressors offers High energy efficient Twin Screw Compressor Blocks having 10 different models ranging from 414 CMH to 3250 CMH manufactured in our ISO 9001:2015 cer
| Models | Capacity | |
| MBM 255 | 404.5 | 521.3 |
| MBM 305 | 475.9 | 623.5 |
| MBM 384 | 599.1 | 785.1 |
| MBM 517 | 802.1 | 1057.0 |
| MBM 689 | 1069.4 | 1468.7 |
| MBM 890 | 1444.3 | 1444.3 |
| MBM 1120 | 1818.7 | 2289.9 |
| MBM 1384 | 2247.5 | 2483.0 |
| MBM 1600 | 2588.1 | 3271.1 |
| MBM 2000 | MBM 2000 | 4089.2 |
Female : Space between two lobes acts as Cylinder
Male : Male lobs acts as Piston
Compression is achieved by the intermeshing of the Male and Female Rotor. Power is applied to the male rotor and as a lobe of the male rotor starts to move out of mesh with the female rotor a void is created and gas is taken in at the inlet port.
Compression is achieved by the intermeshing of the Male and Female Rotor. Power is applied to the male rotor and as a lobe of the male rotor starts to move out of mesh with the female rotor a void is created and gas is taken in at the inlet port.
